Shaowen Chen, Felix, Sherlock
Published on:2021-04-16    The number of views:

Argo CD: A Tool for Kubernetes DevOps

In this post, I'll show you how Argo CD betters Kubernetes DevOps process. Before we begin, let's look at some background information.

Argo CD Capability

GitOps: The origin

As you may already know, Weaveworks published a post titled GitOps - Operations by Pull Request in 2017. Alexis, the author, introduced a way of deployment by using Git as source of truth.

In GitOps practices, we need to define and manage software infrastructures in Git repositories. Software infrastructures involve not only IaaS and Kubernetes but also applications. Everyone can make modifications to software infrastructures by submitting a Pull Request, and an automated program will perform those modifications.

Thus, everyone will be able to focus on developing new features instead of worrying about operation and maintenance including installation, modification, and migration.

Argo CD: GitOps coming true

Argo CD is a GitOps continuous delivery (CD) tool on top of Kubernetes. Here is the schematic diagram from the Argo CD community.

argo-schematics

You can see from the diagram that:

  1. Argo CD pulls application configurations from Git Repo and deploys applications in Kubernetes clusters.
  2. If someone wants to add a new feature, he or she just needs to submit a Pull Request to Git Repo to modify application deployment configurations. Then, wait for merging.
  3. Once the Pull Request gets merged, Argo CD will run an update per Webhook triggers.
  4. Applications updated and notifications sent.

To sum it up, automated operation and maintenance and continuous delivery. Simple and easy to understand, right?

Argo CD: Powerful and extensible

The above functions will be able to cover ordinary Kubernetes operation and maintenance. What if things get more complicated? We cannot escape from scenarios involving multi-cloud, multi-platform, and multi-middleware.

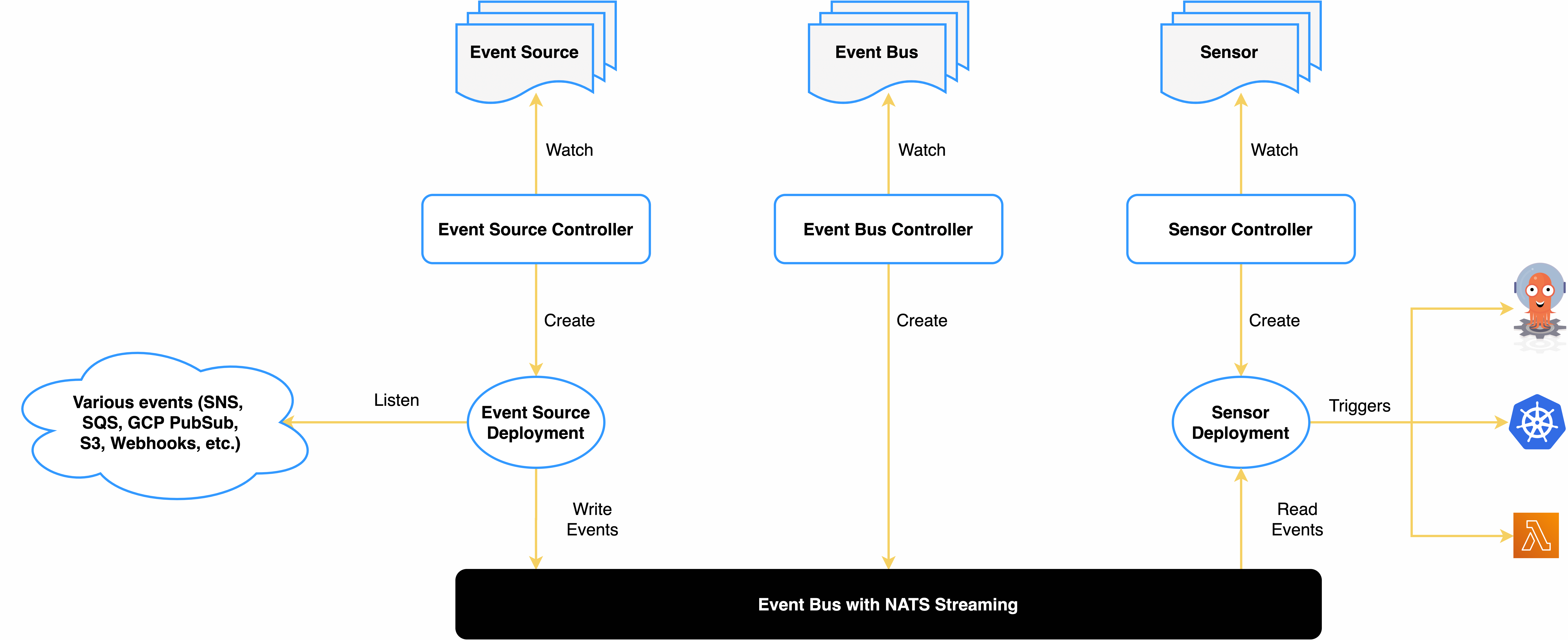

argocd-2

Argo CD defines four components in its processing logic:

  • Event Source: An EventSource defines the configurations required to consume events from external sources.
  • Sensor: It listens to events on the eventbus and acts as an event dependency manager to resolve and execute the triggers.
  • Eventbus: It acts as the transport layer of Argo-Events by connecting the event-sources and sensors.
  • Trigger: A Trigger is the resource/workload executed by the sensor once the event dependencies are resolved.

For more information, see Architecture.

As for operation and maintenance folks, you just need to focus on two aspects:

  • Events Argo CD can process: AMQP, AWS SNS, AWS SQS, Cron Schedules, GCP PubSub, GitHub, GitLab, HDFS, File Based Events, Kafka, Minio, NATS, MQTT, K8s Resources, Slack, NetApp StorageGrid, Webhooks, Stripe, NSQ, Emitter, Redis, and Azure Events Hub.
  • Actions Argo CD can perform: Argo Workflows, Standard K8s Objects, HTTP Requests, AWS Lambda, NATS Messages, Kafka Messages, Slack Notifications, Argo Rollouts CR, Custom/Build Your Own Triggers, and Apache OpenWhisk.

Argo CD on Kubernetes

I'll use Kubernetes v1.18.3 to deploy Argo CD.

Step 1: Deploy Argo CD

  1. Run the following command to create a namespace. Name it argocd.

    kubectl create namespace argocd

  2. Run the following command to deploy Argo CD.

    kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/v1.8.3/manifests/install.yaml


    Note

    The Argo CD community also provides an HA deployment method by running the command kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/v1.8.3/manifests/ha/install.yaml. It's for deployment in production.
  3. Run the following command to set the Service type to NodePort.

    kubectl patch svc argocd-server -p '{"spec": {"type": "NodePort"}}' -n argocd

  4. Run the following command to view all the Services in the namespace argocd.

    $ kubectl -n argocd get svc

    NAME                    TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
    argocd-dex-server       ClusterIP   10.233.34.191   <none>        5556/TCP,5557/TCP,5558/TCP   5m37s
    argocd-metrics          ClusterIP   10.233.54.3     <none>        8082/TCP                     5m36s
    argocd-redis            ClusterIP   10.233.18.86    <none>        6379/TCP                     5m36s
    argocd-repo-server      ClusterIP   10.233.3.171    <none>        8081/TCP,8084/TCP            5m36s
    argocd-server           NodePort    10.233.61.3     <none>        80:31808/TCP,443:30992/TCP   5m36s
    argocd-server-metrics   ClusterIP   10.233.36.228   <none>        8083/TCP                     5m36s


Step 2: Log in to Argo CD

  1. Run the following command to get the admin account's password.

    $ kubectl get pod -n argocd |grep argocd-server

    argocd-server-7d597d9bcd-6nzct        1/1     Running   0          22m


    The Pod ID is the password, namely, argocd-server-7d597d9bcd-6nzct.

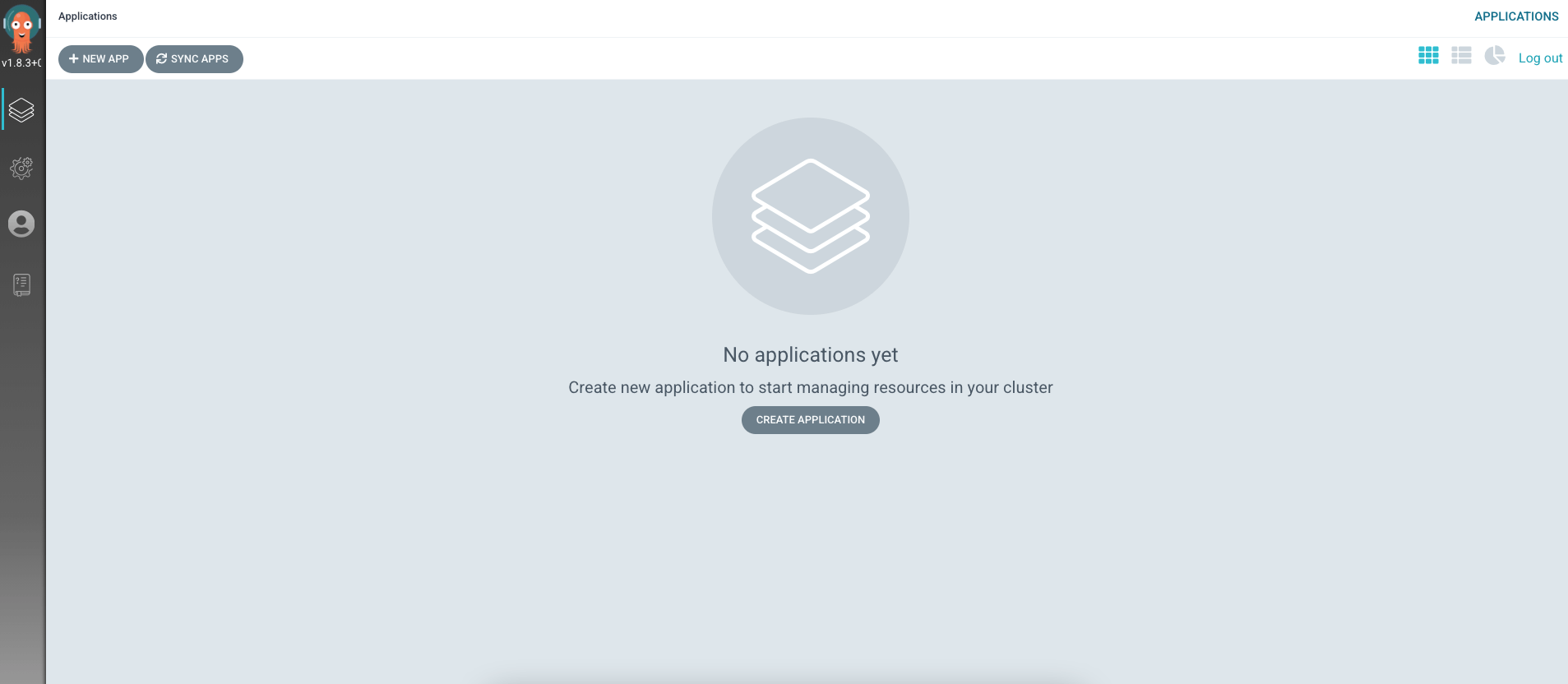

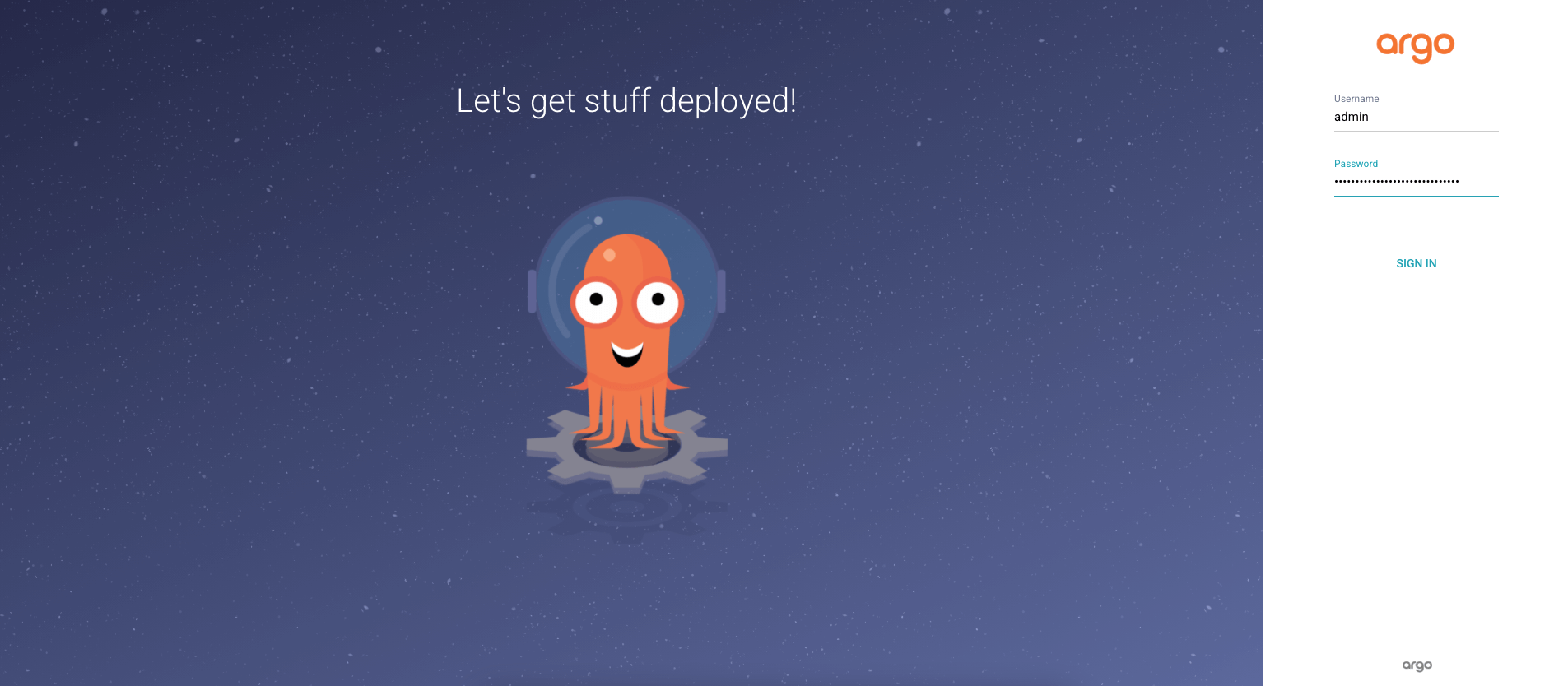

  2. Access Argo CD Web page through http://{HOST_IP}:31808, and use admin/argocd-server-7d597d9bcd-6nzct as account and password to log in.

    argocd-page

    argocd-log-in

Step 3: Install CLI tool

Let's use Linux as an example.

  1. Run the following commands to download CLI tool and make it executable.

    curl -sSL -o /usr/local/bin/argocd https://github.com/argoproj/argo-cd/releases/download/v1.8.3/argocd-linux-amd64
    chmod +x /usr/local/bin/argocd

  2. Run the following command to use the CLI tool to log in to the Argo CD running on your Kubernetes cluster. Make sure you replace HOST_IP with your host IP address.

    $ argocd login {HOST_IP}:31808 --username admin --password argocd-server-7d597d9bcd-6nzct

    'admin' logged in successfully
    Context '{HOST_IP}:31808' updated

  3. You can use the following command to update the admin password to password for your convenience.

    $ argocd account update-password --account admin --current-password argocd-server-7d597d9bcd-6nzct --new-password password

    Password updated
    Context '{HOST_IP}:31808' updated


Step 4: Create an application

We surely can create an application through the Web UI, but let's use the CLI tool here so that you can better understand Argo CD by using the commands below.

  1. Run the following command to create an application.

    argocd app create guestbook --repo https://github.com/argoproj/argocd-example-apps.git --path guestbook --dest-server https://kubernetes.default.svc --dest-namespace default


    As for the flags in the command:

    • --repo: specify the Git repository.
    • --path: specify the relative path of the deployment files in the Git repository.
    • --dest-server: address for accessing the cluster.
    • --dest-namespace: namespace for deploying the application.

    If you go to the directory https://github.com/argoproj/argocd-example-apps/tree/master/guestbook, you can find two YAML files for Deployment and Service respectively.

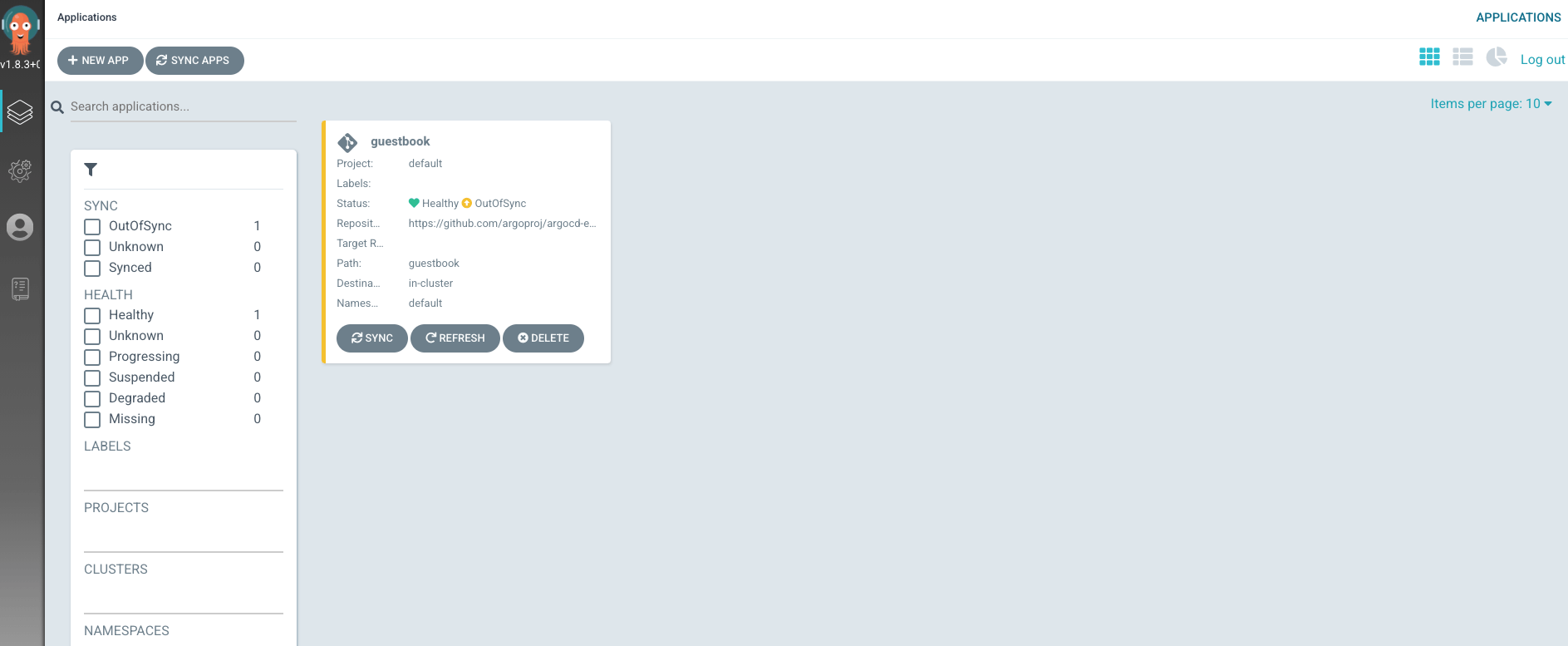

  2. After a while, you can view the service created shown on the Argo CD web page.

    argocd-service

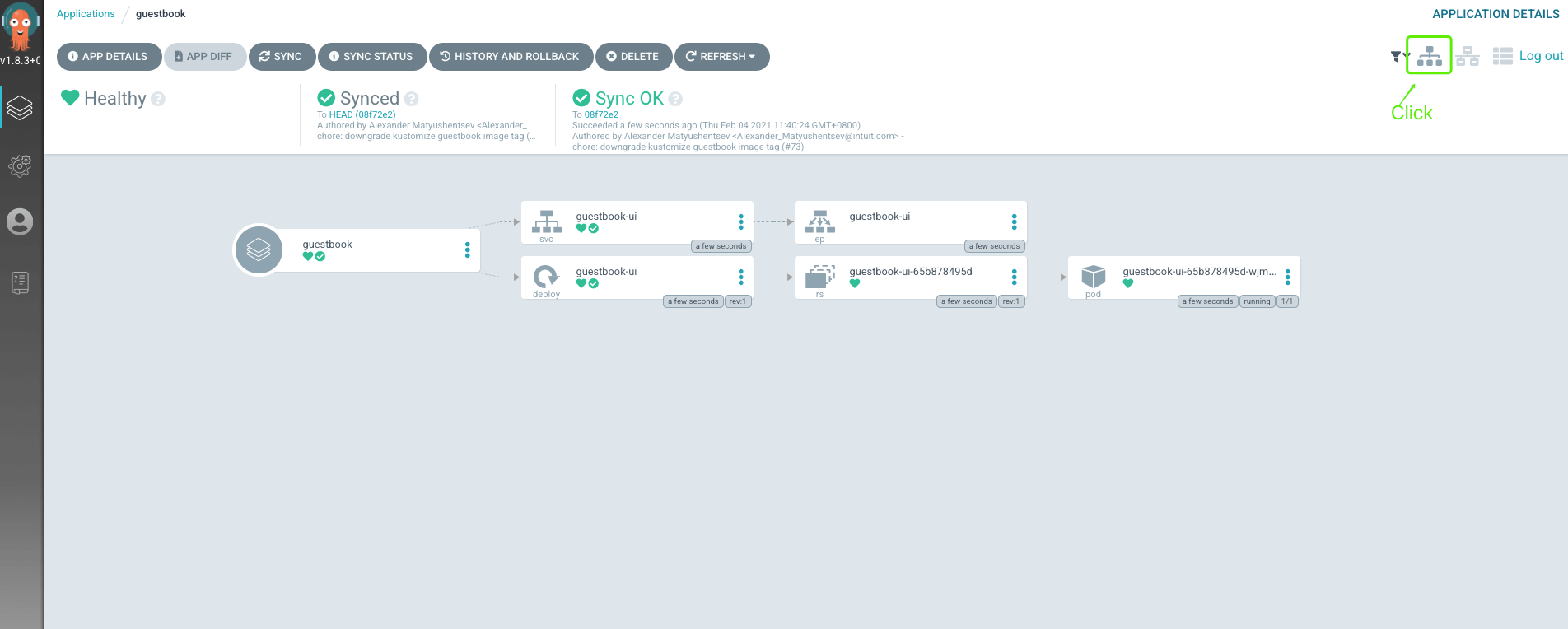

  3. Click it to see its details. You can also click the icon in the upper-right corner to view its topology diagram.

    argocd-topology

  4. Run the following command to see the Services created.

    $ kubectl get all -n default

    NAME                                READY   STATUS    RESTARTS   AGE
    pod/guestbook-ui-65b878495d-wjmxh   1/1     Running   0          60s

    NAME                   TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
    service/guestbook-ui   ClusterIP   10.233.55.230   <none>        80/TCP    61s
    service/kubernetes     ClusterIP   10.233.0.1      <none>        443/TCP   12d

    NAME                           READY   UP-TO-DATE   AVAILABLE   AGE
    deployment.apps/guestbook-ui   1/1     1            1           60s

    NAME                                      DESIRED   CURRENT   READY   AGE
    replicaset.apps/guestbook-ui-65b878495d   1         1         1       60s

  5. Now, run the following command to delete the application. Argo CD will delete the application from its records, and relevant workloads will also be deleted in Kubernetes.

    argocd app delete guestbook


Recap

This blog walks you through the basic functions of Argo CD. I guess you have had a better understanding through the above demonstration about how to deploy Argo CD and how to create an application with it.

As a matter of fact, Argo CD functionality goes beyond this blog. Argo CD can also realize functions such as synchronizing modifications in Git repository to make updates in Kubernetes and automatically trigger updates after image modifications. As you can see from the above schematic diagram, various needs for automated deployment can be met through Event Source and Trigger.

Last but not the least, when updating Kubernetes, Argo CD also supports various resource description methods, including Kustomize, Helm, Ksonnet, Yaml, Json, and customized extension. Wouldn't that make our life easier in using Kubernetes?
