Deploy Redis on KubeSphere

Redis is an open-source (BSD licensed), in-memory data structure store, used as a database, cache and message broker.

This tutorial walks you through an example of deploying Redis from the App Store of KubeSphere.


  • Please make sure you enable the OpenPitrix system.
  • You need to create a workspace, a project, and a user account (project-regular) for this tutorial. The account needs to be a platform regular user and to be invited as the project operator with the operator role. In this tutorial, you log in as project-regular and work in the project demo-project in the workspace demo-workspace. For more information, see Create Workspaces, Projects, Users and Roles.

Hands-on Lab

Step 1: Deploy Redis from the App Store

  1. On the Overview page of the project demo-project, click App Store in the upper-left corner.

  2. Find Redis and click Install on the App Information page.

  3. Set a name and select an app version. Make sure Redis is deployed in demo-project and click Next.

  4. In App Settings, specify persistent volumes and a password for the app. When you finish, click Install.


    To specify more values for Redis, use the toggle switch to see the app's manifest in YAML format and edit its settings.
  5. Wait until Redis is up and running.

Step 2: Access the Redis terminal

  1. Go to Services and click the service name of Redis.

  2. Under Pods, expand the menu to see container details, and then click the Terminal icon.

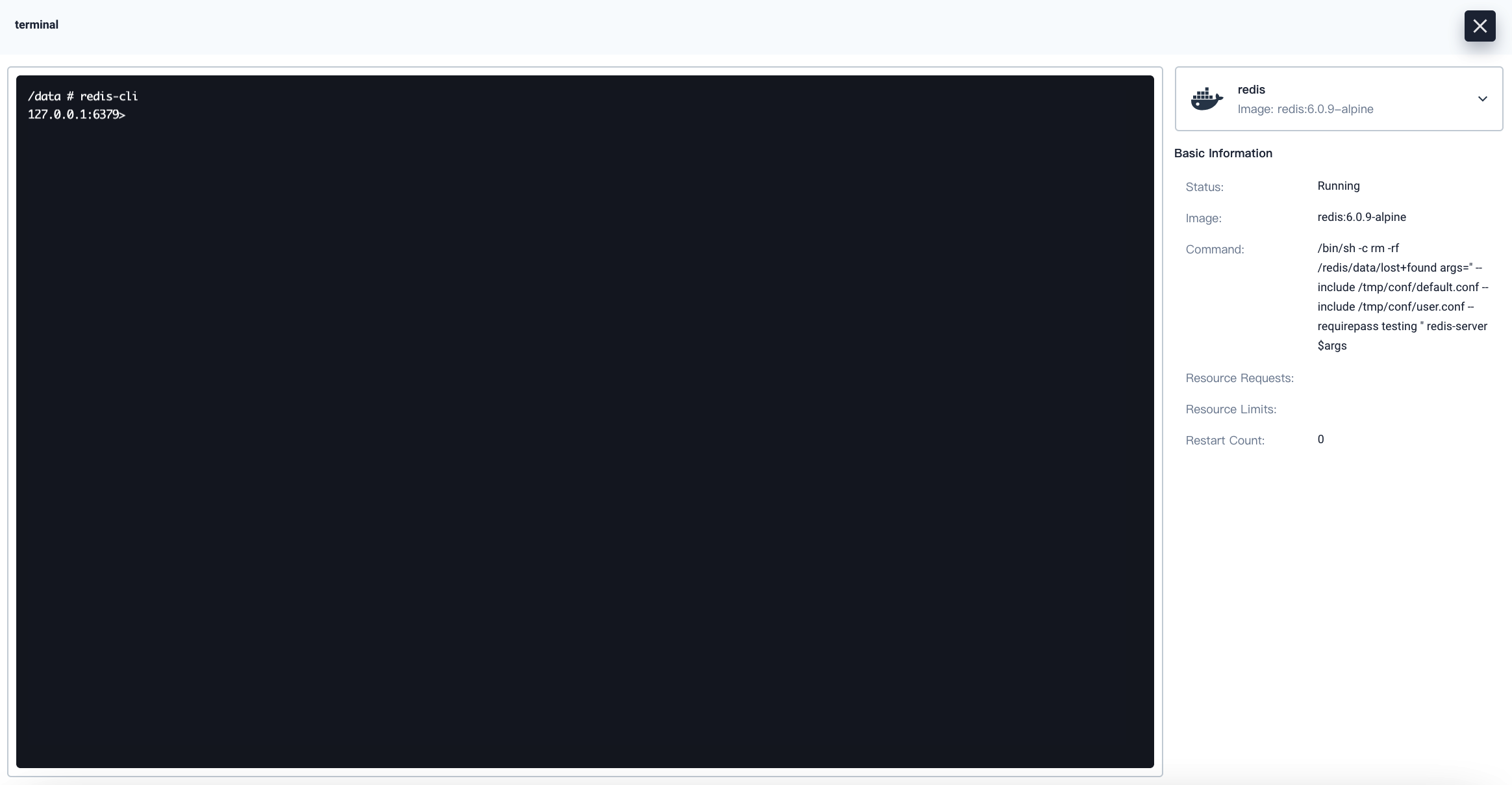

  3. In the pop-up window, use the redis-cli command in the terminal to use the app.


  4. For more information, see the official documentation of Redis.
