Set Up an HA Cluster Using the Internal HAProxy of KubeKey

KubeKey is an easy-to-use tool for creating Kubernetes clusters. Starting from v1.2.1, KubeKey provides a built-in high availability mode to simplify the creation of highly available Kubernetes clusters. The high availability mode that KubeKey implements is called local load balancing mode. KubeKey deploys a load balancer (HAProxy) on each worker node, and the Kubernetes components on all control planes connect to their local kube-apiserver. The Kubernetes components on each worker node, on the other hand, connect to the kube-apiserver of multiple control planes through a reverse proxy, namely the load balancer deployed by KubeKey. Although this mode is less efficient than a dedicated load balancer because additional health check mechanisms are introduced, it brings a more practical, efficient, and convenient high availability deployment mode when current environment cannot provide an external load balancer or virtual IP (VIP).

This document describes how to use the built-in high availability mode when installing KubeSphere on Linux.

Architecture

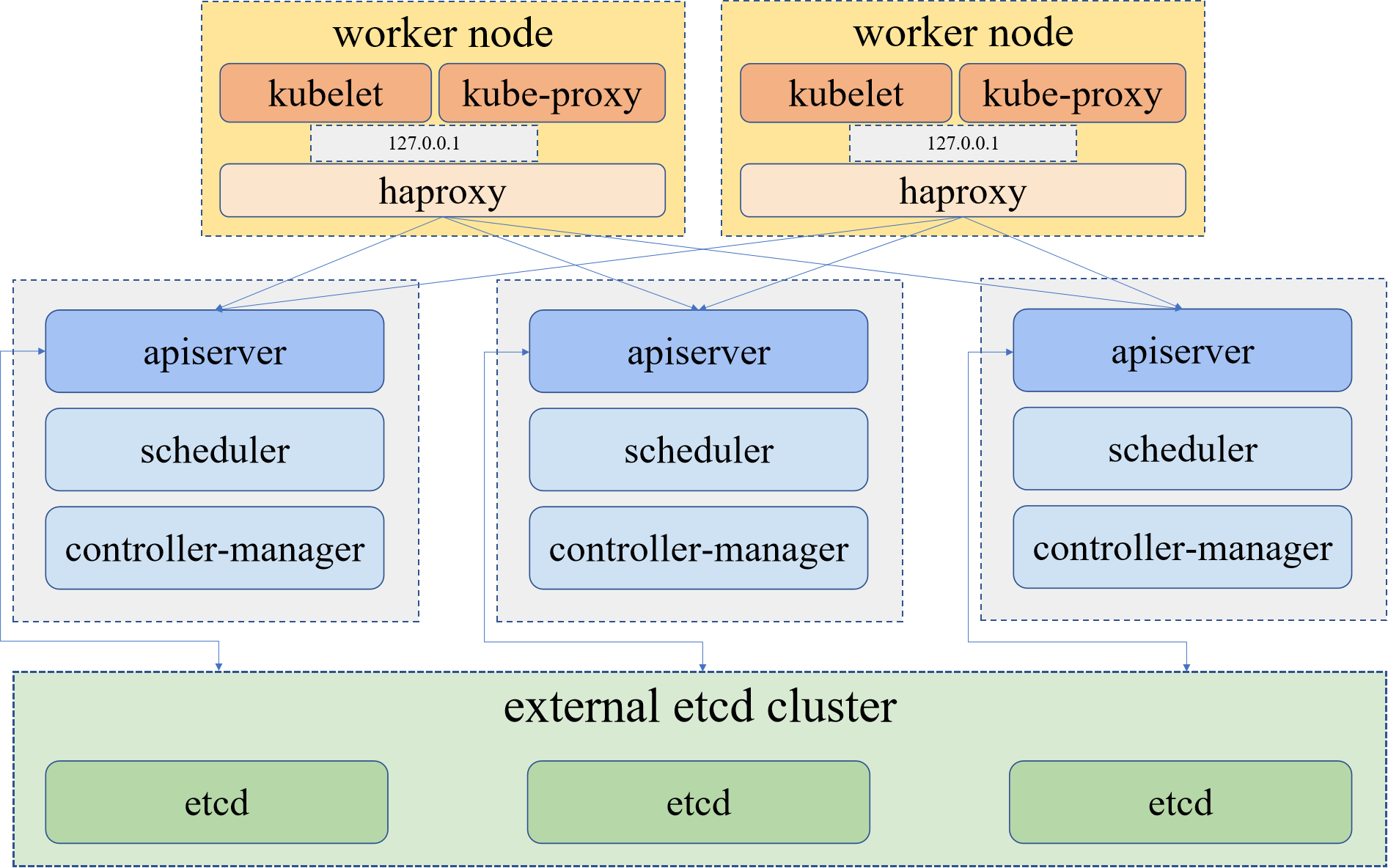

The following figure shows the example architecture of the built-in high availability mode. For more information about system and network requirements, see Multi-node Installation.

HA architecture

Note

In the development environment, make sure you have prepared six Linux machines, among which three of them serve as control planes and the other three as worker nodes.

Download KubeKey

Refer to the following steps to download KubeKey.

Download KubeKey from its GitHub Release Page or run the following command.

curl -sfL https://get-kk.kubesphere.io | VERSION=v3.0.2 sh -

Run the following command first to make sure that you download KubeKey from the correct zone.

export KKZONE=cn

Run the following command to download KubeKey:

curl -sfL https://get-kk.kubesphere.io | VERSION=v3.0.2 sh -

Note

After you download KubeKey, if you transfer it to a new machine also with poor network connections to Googleapis, you must run export KKZONE=cn again before you proceed with the following steps.

Note

The preceding commands download the latest release of KubeKey (v3.0.2). You can modify the version number in the command to download a specific version.

Make kk executable:

chmod +x kk

Create an example configuration file with default configurations. Here Kubernetes v1.22.12 is used as an example.

./kk create config --with-kubesphere v3.3.1 --with-kubernetes v1.22.12

Note

  • Recommended Kubernetes versions for KubeSphere 3.3: v1.19.x, v1.20.x, v1.21.x, * v1.22.x, * v1.23.x, and * v1.24.x. For Kubernetes versions with an asterisk, some features of edge nodes may be unavailable due to incompatability. Therefore, if you want to use edge nodes, you are advised to install Kubernetes v1.21.x or earlier. If you do not specify a Kubernetes version, KubeKey will install Kubernetes v1.23.10 by default. For more information about supported Kubernetes versions, see Support Matrix.
  • If you do not add the flag --with-kubesphere in the command in this step, KubeSphere will not be deployed unless you install it using the addons field in the configuration file or add this flag again when you use ./kk create cluster later.
  • If you add the flag --with-kubesphere without specifying a KubeSphere version, the latest version of KubeSphere will be installed.

Deploy KubeSphere and Kubernetes

After you run the preceding commands, a configuration file config-sample.yaml is created. Edit the file to add machine information, configure the load balancer and more.

Note

The file name may be different if you customize it.

config-sample.yaml example

spec:
  hosts:
  - {name: master1, address: 192.168.0.2, internalAddress: 192.168.0.2, user: ubuntu, password: Testing123}
  - {name: master2, address: 192.168.0.3, internalAddress: 192.168.0.3, user: ubuntu, password: Testing123}
  - {name: master3, address: 192.168.0.4, internalAddress: 192.168.0.4, user: ubuntu, password: Testing123}
  - {name: node1, address: 192.168.0.5, internalAddress: 192.168.0.5, user: ubuntu, password: Testing123}
  - {name: node2, address: 192.168.0.6, internalAddress: 192.168.0.6, user: ubuntu, password: Testing123}
  - {name: node3, address: 192.168.0.7, internalAddress: 192.168.0.7, user: ubuntu, password: Testing123}
  roleGroups:
    etcd:
    - master1
    - master2
    - master3
    control-plane:
    - master1
    - master2
    - master3
    worker:
    - node1
    - node2
    - node3

For more information about different fields in this configuration file, see Kubernetes Cluster Configurations and Multi-node Installation.

Enable the built-in high availability mode

spec:
  controlPlaneEndpoint:
    ##Internal loadbalancer for apiservers
    #internalLoadbalancer: haproxy

    domain: lb.kubesphere.local
    address: ""
    port: 6443

Note

  • To enable the built-in high availability mode, uncomment the field internalLoadbalancer.
  • The fields address and port in config-sample.yaml must be indented by two spaces against controlPlaneEndpoint.
  • The default internal access domain name for the load balancer is lb.kubesphere.local.

Persistent storage plugin configurations

For a production environment, you need to prepare persistent storage and configure the storage plugin (for example, CSI) in config-sample.yaml to define which storage service you want to use. For more information, see Persistent Storage Configurations.

(Optional) Enable pluggable components

KubeSphere has decoupled some core feature components since v2.1.0. These components are designed to be pluggable which means you can enable them either before or after installation. By default, KubeSphere is installed with the minimal package if you do not enable them.

You can enable any of them according to your demands. It is highly recommended that you install these pluggable components to discover the full-stack features and capabilities provided by KubeSphere. Make sure your machines have sufficient CPU and memory before enabling them. See Enable Pluggable Components for details.

Start installation

After you complete the configuration, run the following command to start installation:

./kk create cluster -f config-sample.yaml

Verify installation

  1. Run the following command to inspect the logs of installation.

    kubectl logs -n kubesphere-system $(kubectl get pod -n kubesphere-system -l 'app in (ks-install, ks-installer)' -o jsonpath='{.items[0].metadata.name}') -f

  2. When you see the following message, it means your HA cluster is successfully created.

    #####################################################
    ###              Welcome to KubeSphere!           ###
    #####################################################

    Console: http://192.168.0.3:30880
    Account: admin
    Password: [email protected]

    NOTES:
      1. After you log into the console, please check the
         monitoring status of service components in
         the "Cluster Management". If any service is not
         ready, please wait patiently until all components
         are up and running.
      2. Please change the default password after login.

    #####################################################
    https://kubesphere.io             2020-xx-xx xx:xx:xx
    #####################################################
