Air-gapped Installation on Kubernetes
The air-gapped installation is almost the same as the online installation except that you must create a local registry to host Docker images. This tutorial demonstrates how to install KubeSphere on Kubernetes in an air-gapped environment.
Before you follow the steps below, read Prerequisites first.
Step 1: Prepare a Private Image Registry
You can use Harbor or any other private image registries. This tutorial uses Docker registry as an example with self-signed certificates (If you have your own private image registry, you can skip this step).
Use self-signed certificates
Generate your own certificate by executing the following commands:
mkdir -p certs
openssl req \ -newkey rsa:4096 -nodes -sha256 -keyout certs/domain.key \ -x509 -days 36500 -out certs/domain.crt

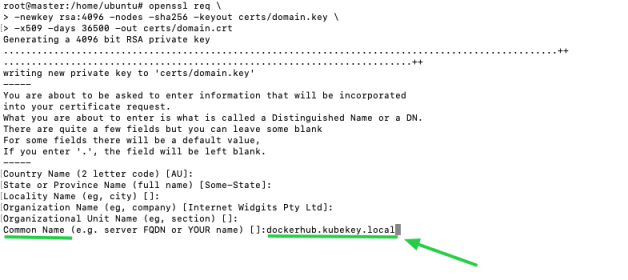

Make sure you specify a domain name in the field
Common Name
when you are generating your own certificate. For instance, the field is set todockerhub.kubekey.local
in this example.
Start the Docker registry
Run the following commands to start the Docker registry:
docker run -d \
--restart=always \
--name registry \
-v "$(pwd)"/certs:/certs \
-v /mnt/registry:/var/lib/registry \
-e REGISTRY_HTTP_ADDR=0.0.0.0:443 \
-e REGISTRY_HTTP_TLS_CERTIFICATE=/certs/domain.crt \
-e REGISTRY_HTTP_TLS_KEY=/certs/domain.key \
-p 443:443 \
registry:2
Note
/var/lib/docker
as the default directory where all Docker related files, including images, are stored. It is recommended you add additional storage volumes with at least 100G mounted to /var/lib/docker
and /mnt/registry
respectively. See fdisk command for reference.Configure the registry
Add an entry to
/etc/hosts
to map the hostname (i.e. the registry domain name; in this case, it isdockerhub.kubekey.local
) to the private IP address of your machine as below.# docker registry 192.168.0.2 dockerhub.kubekey.local
Execute the following commands to copy the certificate to a specified directory and make Docker trust it.
mkdir -p /etc/docker/certs.d/dockerhub.kubekey.local
cp certs/domain.crt /etc/docker/certs.d/dockerhub.kubekey.local/ca.crt
Note
The path of the certificate is related to the domain name. When you copy the path, use your actual domain name if it is different from the one set above.To verify whether the private registry is effective, you can copy an image to your local machine first, and use
docker push
anddocker pull
to test it.
Step 2: Prepare Installation Images
As you install KubeSphere in an air-gapped environment, you need to prepare an image package containing all the necessary images in advance.
Download the image list file
images-list.txt
from a machine that has access to the Internet through the following command:curl -L -O https://github.com/kubesphere/ks-installer/releases/download/v3.4.1/images-list.txt
Note
This file lists images under##+modulename
based on different modules. You can add your own images to this file following the same rule. To view the complete file, see Appendix.Download
offline-installation-tool.sh
.curl -L -O https://github.com/kubesphere/ks-installer/releases/download/v3.4.1/offline-installation-tool.sh
Make the
.sh
file executable.chmod +x offline-installation-tool.sh
You can execute the command
./offline-installation-tool.sh -h
to see how to use the script:root@master:/home/ubuntu# ./offline-installation-tool.sh -h Usage: ./offline-installation-tool.sh [-l IMAGES-LIST] [-d IMAGES-DIR] [-r PRIVATE-REGISTRY] [-v KUBERNETES-VERSION ] Description: -b : save kubernetes' binaries. -d IMAGES-DIR : the dir of files (tar.gz) which generated by `docker save`. default: ./kubesphere-images -l IMAGES-LIST : text file with list of images. -r PRIVATE-REGISTRY : target private registry:port. -s : save model will be applied. Pull the images in the IMAGES-LIST and save images as a tar.gz file. -v KUBERNETES-VERSION : download kubernetes' binaries. default: v1.22.12 -h : usage message
Pull images in
offline-installation-tool.sh
../offline-installation-tool.sh -s -l images-list.txt -d ./kubesphere-images
Note
You can choose to pull images as needed. For example, you can delete##k8s-images
and related images under it inimages-list.text
as you already have a Kubernetes cluster.
Step 3: Push Images to Your Private Registry
Transfer your packaged image file to your local machine and execute the following command to push it to the registry.
./offline-installation-tool.sh -l images-list.txt -d ./kubesphere-images -r dockerhub.kubekey.local
Note
dockerhub.kubekey.local
in the command. Make sure you use your own registry address.Step 4: Download Deployment Files
Similar to installing KubeSphere on an existing Kubernetes cluster in an online environment, you also need to download cluster-configuration.yaml
and kubesphere-installer.yaml
first.
Execute the following commands to download these two files and transfer them to your machine that serves as the taskbox for installation.
curl -L -O https://github.com/kubesphere/ks-installer/releases/download/v3.4.1/cluster-configuration.yaml curl -L -O https://github.com/kubesphere/ks-installer/releases/download/v3.4.1/kubesphere-installer.yaml
Edit
cluster-configuration.yaml
to add your private image registry. For example,dockerhub.kubekey.local
is the registry address in this tutorial, then use it as the value of.spec.local_registry
as below:spec: persistence: storageClass: "" authentication: jwtSecret: "" local_registry: dockerhub.kubekey.local # Add this line manually; make sure you use your own registry address.
Note
You can enable pluggable components in this YAML file to explore more features of KubeSphere. Refer to Enable Pluggle Components for more details.Save
cluster-configuration.yaml
after you finish editing. Replaceks-installer
with your own registry address with the following command:sed -i "s#^\s*image: kubesphere.*/ks-installer:.*# image: dockerhub.kubekey.local/kubesphere/ks-installer:v3.4.1#" kubesphere-installer.yaml
Warning
dockerhub.kubekey.local
is the registry address in the command. Make sure you use your own registry address.
Step 5: Start Installation
Execute the following commands after you make sure that all steps above are completed.
kubectl apply -f kubesphere-installer.yaml
kubectl apply -f cluster-configuration.yaml
Step 6: Verify Installation
When the installation finishes, you can see the content as follows:
#####################################################
### Welcome to KubeSphere! ###
#####################################################
Console: http://192.168.0.2:30880
Account: admin
Password: P@88w0rd
NOTES:
1. After logging into the console, please check the
monitoring status of service components in
the "Cluster Management". If any service is not
ready, please wait patiently until all components
are ready.
2. Please modify the default password after login.
#####################################################
https://kubesphere.io 20xx-xx-xx xx:xx:xx
#####################################################
Now, you will be able to access the web console of KubeSphere through http://{IP}:30880
with the default account and password admin/P@88w0rd
.
Note
Appendix
Image list of KubeSphere 3.4
##kubesphere-images
kubesphere/ks-installer:v3.4.1
kubesphere/ks-apiserver:v3.4.1
kubesphere/ks-console:v3.4.1
kubesphere/ks-controller-manager:v3.4.1
kubesphere/kubectl:v1.20.0
kubesphere/kubefed:v0.8.1
kubesphere/tower:v0.2.1
minio/minio:RELEASE.2019-08-07T01-59-21Z
minio/mc:RELEASE.2019-08-07T23-14-43Z
csiplugin/snapshot-controller:v4.0.0
kubesphere/nginx-ingress-controller:v1.3.1
mirrorgooglecontainers/defaultbackend-amd64:1.4
kubesphere/metrics-server:v0.4.2
redis:5.0.14-alpine
haproxy:2.0.25-alpine
alpine:3.14
osixia/openldap:1.3.0
kubesphere/netshoot:v1.0
##kubeedge-images
kubeedge/cloudcore:v1.13.0
kubesphere/iptables-manager:v1.13.0
kubesphere/edgeservice:v0.3.0
##gatekeeper-images
openpolicyagent/gatekeeper:v3.5.2
##openpitrix-images
kubesphere/openpitrix-jobs:v3.3.2
##kubesphere-devops-images
kubesphere/devops-apiserver:ks-v3.4.1
kubesphere/devops-controller:ks-v3.4.1
kubesphere/devops-tools:ks-v3.4.1
kubesphere/ks-jenkins:v3.4.0-2.319.3-1
jenkins/inbound-agent:4.10-2
kubesphere/builder-base:v3.2.2
kubesphere/builder-nodejs:v3.2.0
kubesphere/builder-maven:v3.2.0
kubesphere/builder-maven:v3.2.1-jdk11
kubesphere/builder-python:v3.2.0
kubesphere/builder-go:v3.2.0
kubesphere/builder-go:v3.2.2-1.16
kubesphere/builder-go:v3.2.2-1.17
kubesphere/builder-go:v3.2.2-1.18
kubesphere/builder-base:v3.2.2-podman
kubesphere/builder-nodejs:v3.2.0-podman
kubesphere/builder-maven:v3.2.0-podman
kubesphere/builder-maven:v3.2.1-jdk11-podman
kubesphere/builder-python:v3.2.0-podman
kubesphere/builder-go:v3.2.0-podman
kubesphere/builder-go:v3.2.2-1.16-podman
kubesphere/builder-go:v3.2.2-1.17-podman
kubesphere/builder-go:v3.2.2-1.18-podman
kubesphere/s2ioperator:v3.2.1
kubesphere/s2irun:v3.2.0
kubesphere/s2i-binary:v3.2.0
kubesphere/tomcat85-java11-centos7:v3.2.0
kubesphere/tomcat85-java11-runtime:v3.2.0
kubesphere/tomcat85-java8-centos7:v3.2.0
kubesphere/tomcat85-java8-runtime:v3.2.0
kubesphere/java-11-centos7:v3.2.0
kubesphere/java-8-centos7:v3.2.0
kubesphere/java-8-runtime:v3.2.0
kubesphere/java-11-runtime:v3.2.0
kubesphere/nodejs-8-centos7:v3.2.0
kubesphere/nodejs-6-centos7:v3.2.0
kubesphere/nodejs-4-centos7:v3.2.0
kubesphere/python-36-centos7:v3.2.0
kubesphere/python-35-centos7:v3.2.0
kubesphere/python-34-centos7:v3.2.0
kubesphere/python-27-centos7:v3.2.0
quay.io/argoproj/argocd:v2.3.3
quay.io/argoproj/argocd-applicationset:v0.4.1
ghcr.io/dexidp/dex:v2.30.2
redis:6.2.6-alpine
##kubesphere-monitoring-images
jimmidyson/configmap-reload:v0.7.1
prom/prometheus:v2.39.1
kubesphere/prometheus-config-reloader:v0.55.1
kubesphere/prometheus-operator:v0.55.1
kubesphere/kube-rbac-proxy:v0.11.0
kubesphere/kube-state-metrics:v2.6.0
prom/node-exporter:v1.3.1
prom/alertmanager:v0.23.0
thanosio/thanos:v0.31.0
grafana/grafana:8.3.3
kubesphere/kube-rbac-proxy:v0.11.0
kubesphere/notification-manager-operator:v2.3.0
kubesphere/notification-manager:v2.3.0
kubesphere/notification-tenant-sidecar:v3.2.0
##kubesphere-logging-images
kubesphere/elasticsearch-curator:v5.7.6
kubesphere/opensearch-curator:v0.0.5
kubesphere/elasticsearch-oss:6.8.22
opensearchproject/opensearch:2.6.0
opensearchproject/opensearch-dashboards:2.6.0
kubesphere/fluentbit-operator:v0.14.0
docker:19.03
kubesphere/fluent-bit:v1.9.4
kubesphere/log-sidecar-injector:v1.2.0
elastic/filebeat:6.7.0
kubesphere/kube-events-operator:v0.6.0
kubesphere/kube-events-exporter:v0.6.0
kubesphere/kube-events-ruler:v0.6.0
kubesphere/kube-auditing-operator:v0.2.0
kubesphere/kube-auditing-webhook:v0.2.0
##istio-images
istio/pilot:1.14.6
istio/proxyv2:1.14.6
jaegertracing/jaeger-operator:1.29
jaegertracing/jaeger-agent:1.29
jaegertracing/jaeger-collector:1.29
jaegertracing/jaeger-query:1.29
jaegertracing/jaeger-es-index-cleaner:1.29
kubesphere/kiali-operator:v1.50.1
kubesphere/kiali:v1.50
##example-images
busybox:1.31.1
nginx:1.14-alpine
joosthofman/wget:1.0
nginxdemos/hello:plain-text
wordpress:4.8-apache
mirrorgooglecontainers/hpa-example:latest
fluent/fluentd:v1.4.2-2.0
perl:latest
kubesphere/examples-bookinfo-productpage-v1:1.16.2
kubesphere/examples-bookinfo-reviews-v1:1.16.2
kubesphere/examples-bookinfo-reviews-v2:1.16.2
kubesphere/examples-bookinfo-details-v1:1.16.2
kubesphere/examples-bookinfo-ratings-v1:1.16.3
##weave-scope-images
weaveworks/scope:1.13.0
